Cutting Dies & ASTM Specific Sample Specimen Preparation

The Universal Test Machine Co. offers a comprehensive range of ASTM, ISO, DIN, EN, GOST, and JIS cutting dies used in conjunction with arbor presses or universal testing machines to fabricate standardized test specimens. For tensile and tear-based material testing, precise specimen geometry is essential to ensure accurate and repeatable mechanical results.

Cutting die selection is primarily based on material thickness, modulus, and Shore hardness, particularly for rubber, elastomers, and thermoplastic sheets. When these material properties are known, Universal Test Machine Co. can recommend the optimal die and press configuration. Sample evaluation and ASTM-specific molding trays are also available upon request.

Note – Universal Test Machine Co. cutting dies are compatible with virtually any arbor press or universal testing machine.

---

Ribbon Steel vs. Hardened Steel Cutting Dies

Two primary die constructions are used depending on the mechanical behavior of the specimen material and the requirements of tensile specimen preparation:

Ribbon Steel Cutting Dies

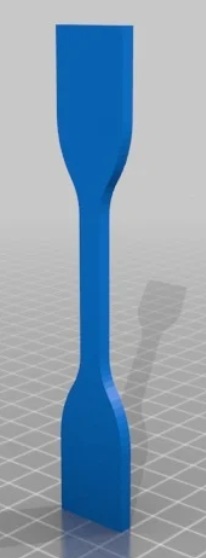

Ribbon steel dies are formed by bending sharpened steel rule into the required specimen geometry, including dogbone specimens and tear test samples. These ASTM sample cutters are best suited for low-durometer elastomers, rubber compounds, and thin flexible plastics, typically in the range of 0–3 mm thickness.

For highly elastic materials, ribbon steel dies provide clean, low-distortion cuts without inducing excessive deformation or edge damage. The die is typically supported in a foam backing, which distributes the applied force evenly during cutting and reduces localized stress concentrations that could distort the specimen profile. These dies are commonly used for elastomer specimen preparation in tests such as ASTM D412 and ASTM D624.

Hardened Steel Cutting Dies
Hardened steel dies are precision-machined and heat-treated, making them significantly more rigid and wear-resistant. These specimen cutting dies are used for higher strength plastics and semi-rigid materials, typically up to 5 mm thickness.

For thermoplastics with higher modulus and lower ductility, hardened dies ensure dimensional accuracy, sharp edge definition, and long-term repeatability. This is especially important when producing plastic tensile specimens, where dimensional consistency directly affects calculated material properties. Many designs incorporate a spring-loaded ejector or backstop, which assists in removing the specimen after cutting and prevents material binding within the die cavity. These dies are typically used for preparing rigid plastic specimens in ASTM D638.

---

Cutting Procedure Using an Arbor Press or UTM

The cutting die is mounted to a benchtop arbor press or adapted to a universal testing machine (UTM) using appropriate fixtures and adapters. This allows laboratories to use their existing equipment as an ASTM specimen cutting solution without requiring dedicated presses.

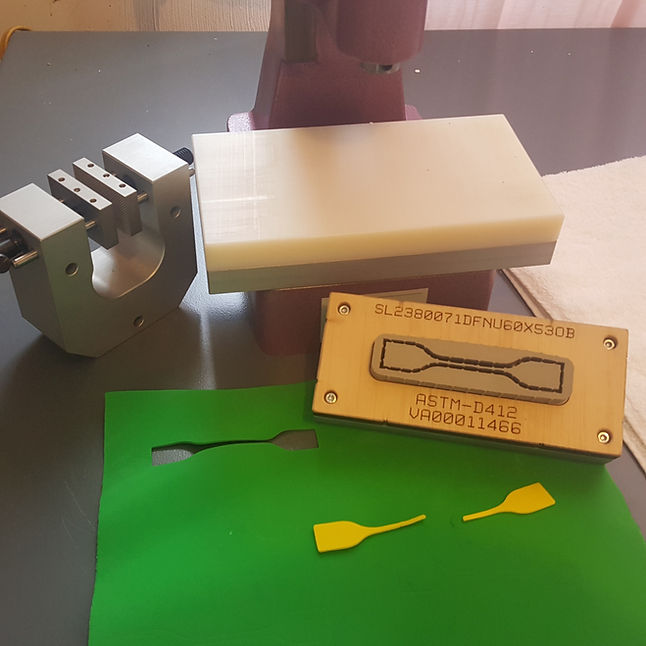

The specimen sheet—typically rubber or plastic—is placed on a hard nylon counter plate, which provides a uniform reaction surface and protects the cutting edge.

A controlled downward force is applied:

• On an arbor press, force is applied manually via lever action
• On a UTM, the system is operated in load control, allowing precise force application and protection against overload

This controlled compression ensures full penetration of the material without excessive deformation. This is especially important for dogbone specimen preparation, where edge quality directly affects stress distribution, elongation behavior, and ultimate tensile results.

---

Material Considerations for Rubber and Plastic Specimens

Specimen preparation varies significantly depending on whether the material is elastomeric or thermoplastic, which directly influences the choice of ASTM cutting die:

Elastomers and Rubber
These materials exhibit high elongation and low modulus. Clean, smooth edges are critical to prevent premature failure initiation. Ribbon steel dies are typically preferred due to their ability to cut without distorting soft materials.

Flexible Films and Thin Plastics
Thin plastic films and softer thermoplastics behave similarly to elastomers during cutting and also benefit from ribbon steel dies, especially at lower thicknesses.

Rigid and Semi-Rigid Plastics
These materials exhibit higher stiffness and lower elongation. Dimensional tolerances and edge definition become more critical, making hardened steel dies the preferred solution for consistent plastic specimen preparation and repeatable tensile testing results.

---

Die Maintenance and Longevity

Hardened steel dies can be re-sharpened multiple times without compromising geometry, making them ideal for high-volume laboratories performing routine ASTM specimen preparation. Ribbon steel dies can also be sharpened, though this process typically requires removal of the supporting foam and careful edge reconditioning.

For long-term use, particularly in plastic specimen preparation, hardened dies provide superior durability and consistency.

---

Sample Sheet Preparation

For elastomer testing, specimens are commonly cut from molded sheets prepared to controlled thickness and cure conditions. Typical sheet characteristics include:

• Approximately 2 mm thickness (0.08–0.1 in)
• Standard sizes of 150 mm × 150 mm (6" × 6")

Uniform sheet preparation ensures consistent material properties and thickness prior to die cutting, which directly impacts test repeatability and data accuracy.

---

Integrated Solution Approach

Universal Test Machine Co. provides a complete ecosystem for specimen preparation and testing, including:

• ASTM-compliant cutting dies (Ribbon Steel & Hardened Steel)
• Arbor presses and UTM-based cutting solutions
• Nylon counter plates and mounting adapters
• Universal testing machines with position and load control

This integrated approach ensures that tensile specimen preparation and ASTM sample cutting align directly with mechanical testing requirements, minimizing variability and improving overall data reliability.

---

Additional Die Configurations

In addition to standard specimen geometries, Universal Test Machine Co. can also supply a wide range of circular, rectangular and square cutting dies in both ribbon steel and hardened steel constructions. These dies are commonly used for:

• General material sampling
• Compression specimen preparation
• Custom and non-standard test geometries
