S-Beam Imperial Load Cells

S-Beam Load Cells for Universal Testing Machines

S-beam load cells are among the most widely used force sensors in universal testing machine (UTM) applications due to their compact geometry, bidirectional measurement capability, and exceptional accuracy. Designed to measure both tensile and compressive forces, S-beam load cells are ideal for laboratories, manufacturing environments, and research facilities that require reliable and repeatable force data.

Characterized by their distinctive “S” shaped profile, these load cells are engineered to deform in a highly predictable manner under load. This controlled deflection allows the internal strain gauges to accurately measure force while maintaining excellent linearity and minimal hysteresis.

How S-Beam Load Cells Work

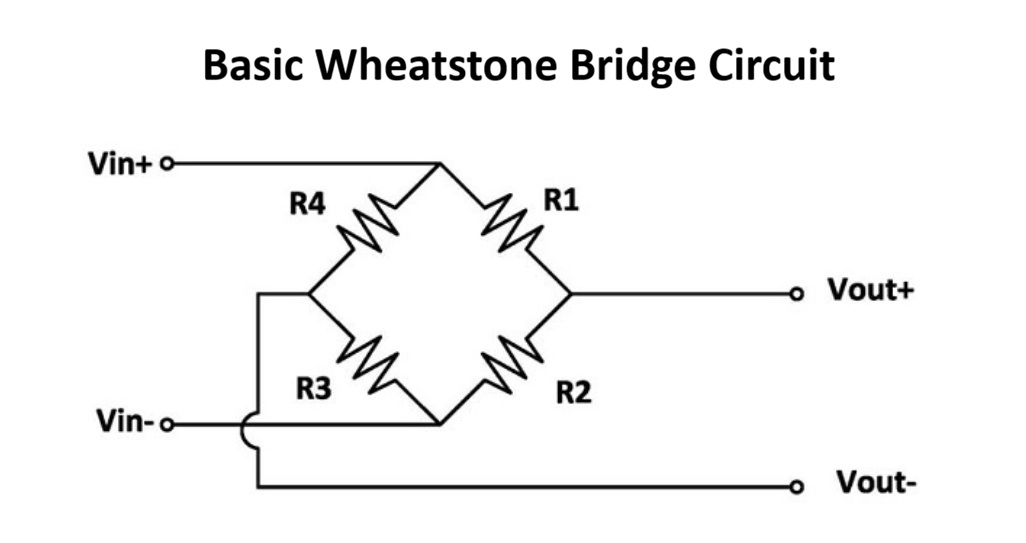

At the core of an S-beam load cell is a precision-machined metal element instrumented with bonded foil strain gauges. These gauges are wired into a full Wheatstone bridge, enabling the sensor to convert mechanical strain into a proportional electrical signal.

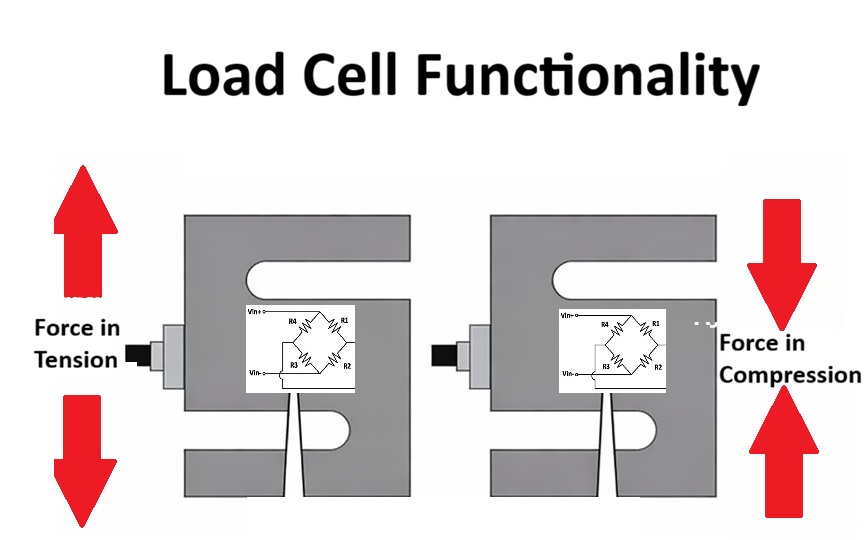

When a force is applied:

In Tension:
The upper threaded coupling pulls upward while the lower coupling pulls downward. The center web of the S-beam experiences shear and bending strain, causing two gauges to elongate while the opposing gauges compress. This imbalance in the Wheatstone bridge generates a differential voltage proportional to the applied tensile force.

In Compression:
The force path reverses as the couplings push toward each other. Although the direction of strain changes, the bridge remains symmetrical, allowing the load cell to measure compressive force with the same level of precision.

Because strain levels remain extremely small—often measured in microstrain—the elastic element always operates within its designed range, ensuring repeatable measurements across thousands or even millions of cycles.

Key Performance Advantages:

• True bidirectional measurement for both tension and compression

• Excellent accuracy, repeatability, and long-term stability

• Compact form factor ideal for benchtop and floor-standing UTMs

• Strong resistance to off-axis loading when properly aligned

Imperial Threaded Couplings and Load Train Integration

S-beam load cells commonly feature female imperial threaded holes on both the upper and lower interfaces. Typical thread styles include:

• 1/4-28 UNF

• 5/16-24 UNF

• 1/2-20 UNF

• 5/8-18 UNF

• 3/4-16 UNF

These standardized connections allow the load cell to integrate seamlessly into the load train—the mechanical path through which force travels from the crosshead to the specimen.

Using threaded adapters, eye ends, clevises, or grip rods, an S-beam can be quickly paired with:

• Wedge grips

• Pneumatic grips

• Peel fixtures

• Shear tools

• Custom test frames

Proper thread engagement and alignment are critical. Misalignment can introduce bending moments that degrade accuracy and potentially damage the sensor.

Why S-Beams Excel in Tensile and Compression Testing

Universal testing machines demand force sensors that respond instantly and predictably across varying load conditions. S-beam load cells are particularly effective because the force path travels directly through the sensor’s neutral axis, minimizing measurement error.

In tensile testing, the inline configuration keeps the specimen centered, promoting uniform stress distribution and helping laboratories meet strict testing standards.

In compression testing, the same sensor can remain installed—eliminating changeover time and reducing calibration variables. This flexibility makes S-beams especially valuable in multi-test laboratories where efficiency and repeatability are paramount.

Additionally, their geometry naturally supports lower-capacity testing where resolution is critical, such as:

• Plastics and films

• Elastomers and rubber

• Medical devices

• Packaging materials

• Textiles and fibers

• Spring testing

S-Beam Load Cells from Universal Test Machine Co.

Universal Test Machine Co. supplies precision S-beam load cells designed specifically for integration with universal testing machines and custom force measurement systems.

Our offering includes:

• Replacement load cells compatible with many legacy and modern test frames

• Imperial-thread configurations for straightforward mechanical integration

• Load cell and indicator packages for customers building their own tensile testing systems

• Multiple capacities to preserve measurement resolution across diverse applications

Every load cell is delivered with a detailed ISO/IEC 17025 calibration certificate, ensuring traceability, audit readiness, and confidence in your force data.

Built for Accurate Force Measurement

This page serves as the gateway to our S-beam load cell product family, where capacities, dimensions, threaded interfaces, and performance characteristics are organized to help you quickly identify the correct sensor for your application.

Whether you are upgrading an existing universal testing machine, replacing an aging sensor, or engineering a custom test setup, S-beam load cells provide the precision force measurement foundation required for dependable materials testing.
