This motorized fixture is designed to test rubber O-rings. The fixture turns at an adjustable speed while the machine pulls the sample in tension. Ple...

This package involves several pieces. The frictional surfaces can be changed which makes this fixture extremely versatile. Please see the ASTM D1...

The Floating Roller peel fixture is used in conjunction with a bottom tensile grip such as a vise or self-tightening roller grip to perform ASTM ...

This puncture fixture uses a 1" diameter ball to burst through fabric, geo-textiles, or non-woven material. The ASTM D3787 fixture is identical t...

The ASTM D4964 Tensile Band Clamp Fixture is used to test elastomeric fabrics.  The sample is a loop band and it is pulled apart by the...

The ASTM D695 fixture is used between two compression platens. The fixture suspends the sample in a vertical position so that it can be load...

This tool uses compression to punch a 1 inch diameter hole into a plastic sample. Please see the ASTM D732 overview for more information. I...

The 90 degree peel fixture is a popular item. Setting up the apparutus involves anchoring the pulleys behind the load cell. Please see the ASTM D...

The ASTM B913 fixture is a shoulder type tensile grip for performing pull off tests on wire crimps, plugs, and connectors. The disk shaped chuck can b...

The ASTM B565 is used for shear testing alumnium bolts, rivets, rod, and wire. This test is known as double shear test because the shearing force is i...

The ASTM D1871 fixture is used to measure the adhesion of tire bead wire which is embedded into a vulcanized rubber matrix. A bottom grip is used to p...

The ASTM D2229 fixture is used for testing the adhesion strength of steel tire cords inside a vulcanized rubber matrix. This test is similar to ASTM D...

ASTM C364 is the definitive standard for determining the edgewise compressive strength of sandwich panels, which are widely used in aerospace, marine,...

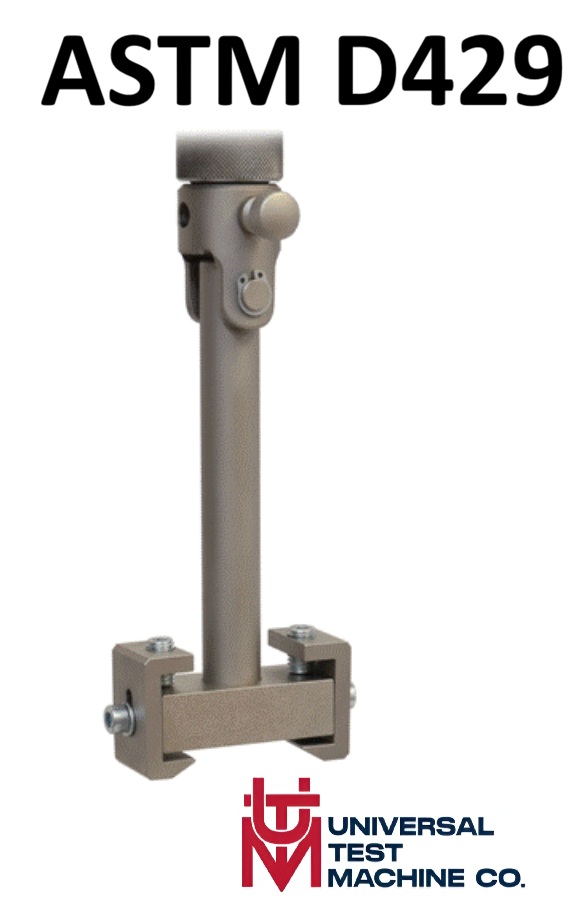

The ASTM D429 fixture is used to mount a customer supplied substrate plate with the sample adhered to it. The sample is usually adhered in a 1x1&rdquo...

The ASTM D2290 fixture is used to measure the apparent hoop tensile strength of plastic pipe. A thin cross section of pipe is cut and mounted around t...

The ASTM B406 is used for a transverse rupture test on cemented carbides. This test is similar to a guided bend test. The fixture is designed to sit b...

...

The ASTM D6641 is used for combined compression loading of polymer matrix specimens.  For more information, please see our guide on the D66...

The ASTM A185 fixture is used for testing steel rebar that is used in reinforced concrete. The bar or wire is welded together in a cross pattern. This...

The ASTM D3354 is used to measure the blocking load force of plastic films. Blocking is an undesirable characterisitc of smooth plastic films to adher...

The ASTM C297 Fixture is used to test the adhesive strength of composite sandwich constructions. The sample is glued to the square blocks an...

The ASTM D7332 fixture is used to test te pull-through resistance of fasteners used in carbon fiber-reinforced polymer matrix composites.  ...

The ASTM C307 fixture is specially shaped for standard sized monolithic concrete type samples. Aggregrate and mortar is mixed together to create struc...

The ASTM D7137 is an aerospace specification used to measure the shear strength of polymer matrix composites after they have been damaged by an impact...

The ASTM D3410 fixture is used to compress a polymer matrix composite that is reinforced by high-modulus fibers. Carbon fiber is mounted into this fix...

The ASTM E238 test involves a flat square plate specimen which has a hole towards the bottom side. A pin is put through this hole and pulled downward ...

ASTM F2118 provides a standardized method for evaluating the long-term fatigue behavior of spinal implant devices—specifically those that are su...

The ASTM F1044 governs a test for measuring the shear strength of a calcium phosphate adhered to a metallic substrate. ...

Theory: The ASTM D905 Compression Shear Test Fixture is specifically designed for evaluating the bond strength of adhesives in wood and laminated mat...

ASTM F1306 is a standard test method used to evaluate the slow rate penetration resistance of flexible barrier films and laminates. This test measures...

ASTM D4501 describes a method to determine the shear strength of adhesive bonds between rigid substrates using a block-shear test. This test is critic...

Overview ASTM D4833 is the standard test method for measuring the puncture resistance of geotextiles and similar materials when subjected to sharp ob...

ASTM D5379 is the standard test method used to determine the in-plane shear properties of fiber-reinforced composite materials using a specialized V-n...

ASTM D5458 specifies the standard method for measuring the peel cling (surface adhesion) between layers of stretch wrap film. Peel cling is critical f...

...
